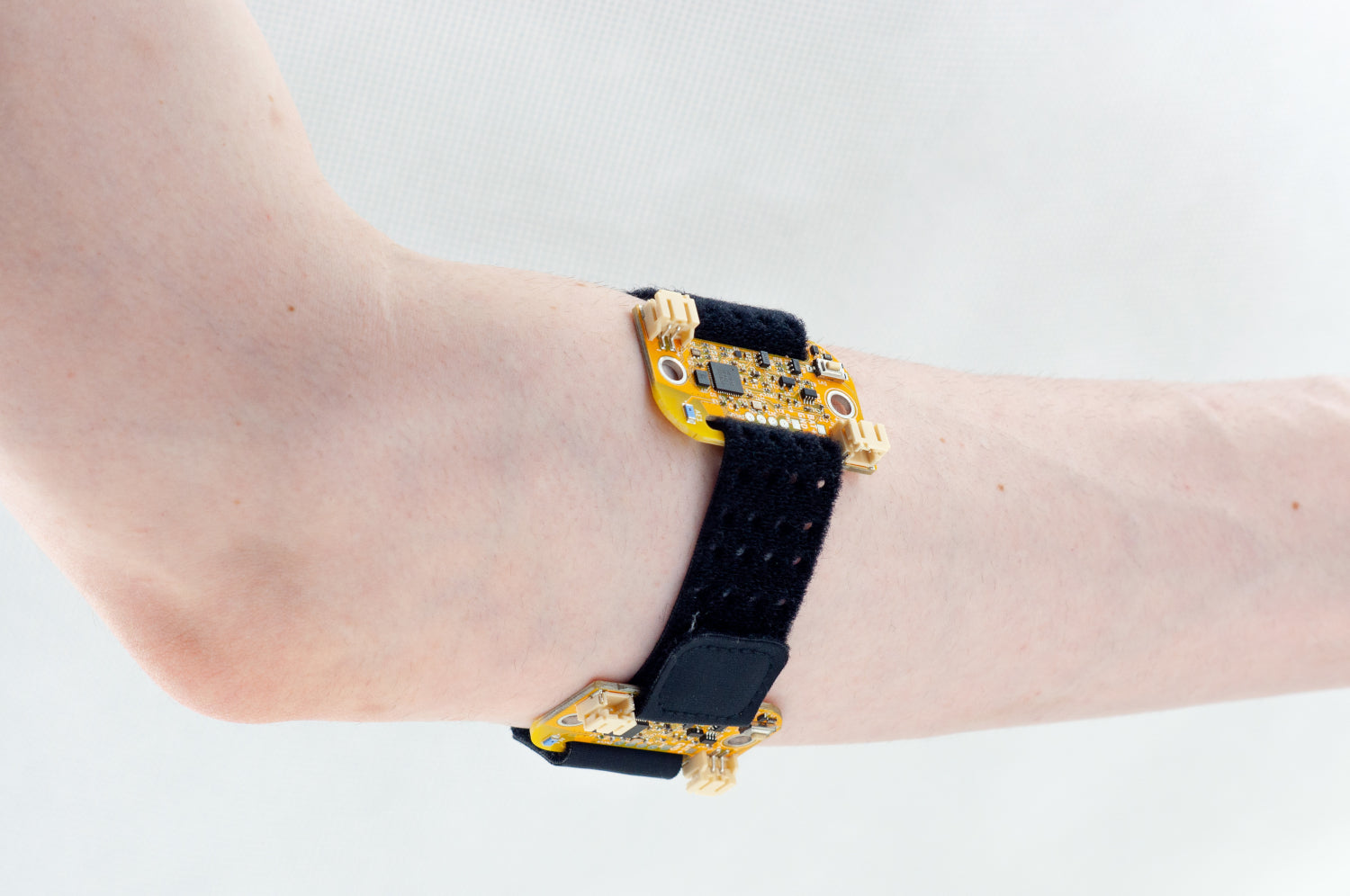

  • uMyo - wearable EMG sensor for measuring muscle activity, worn on the arm

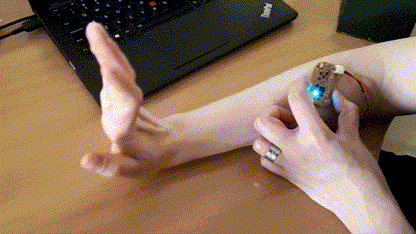

  • uMyo - wearable EMG sensor, with LED glowing with hand movement

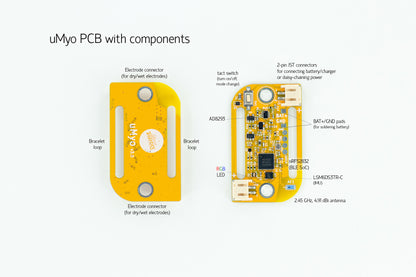

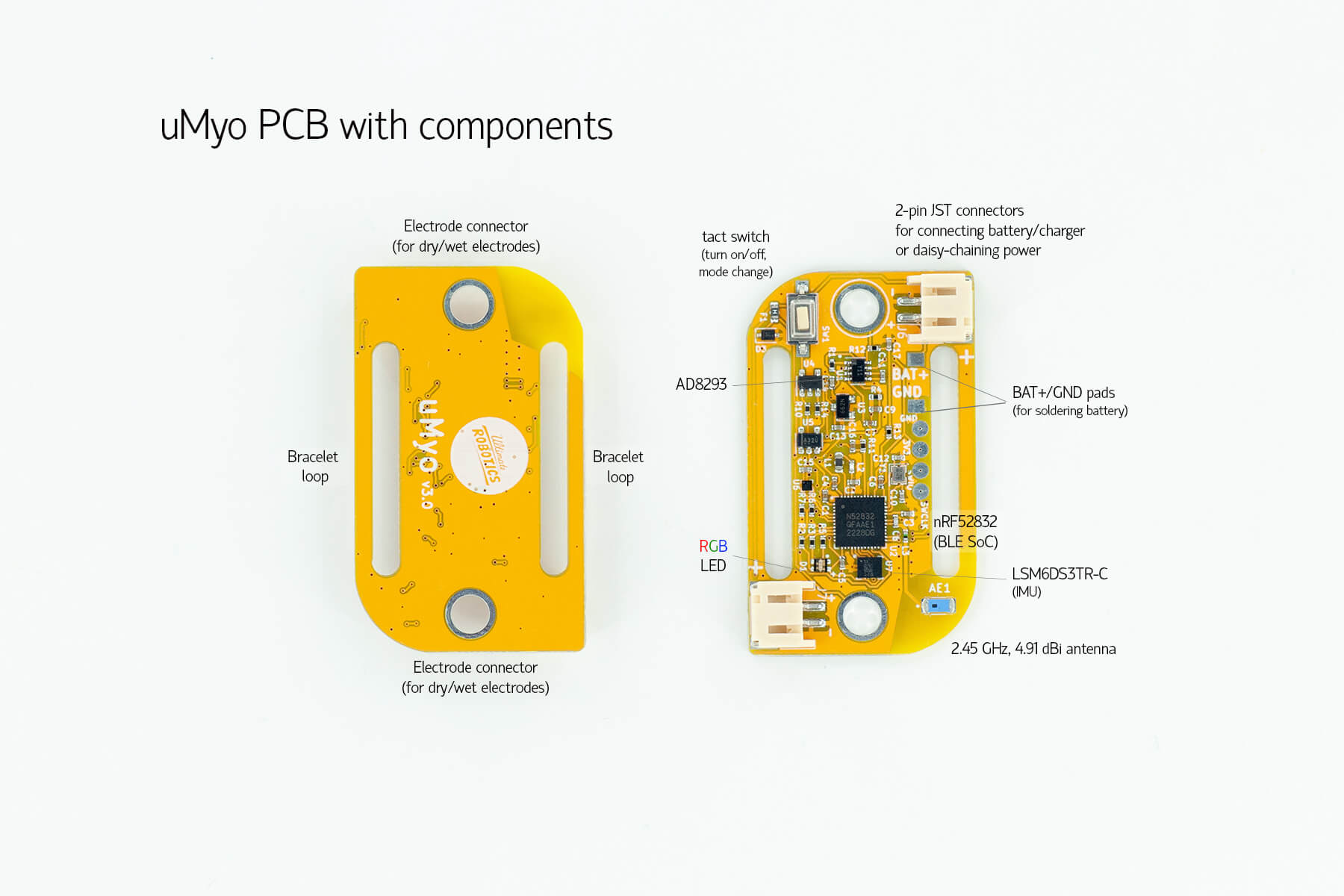

  • uMyo EMG sensor - PCB front and back, with components shown

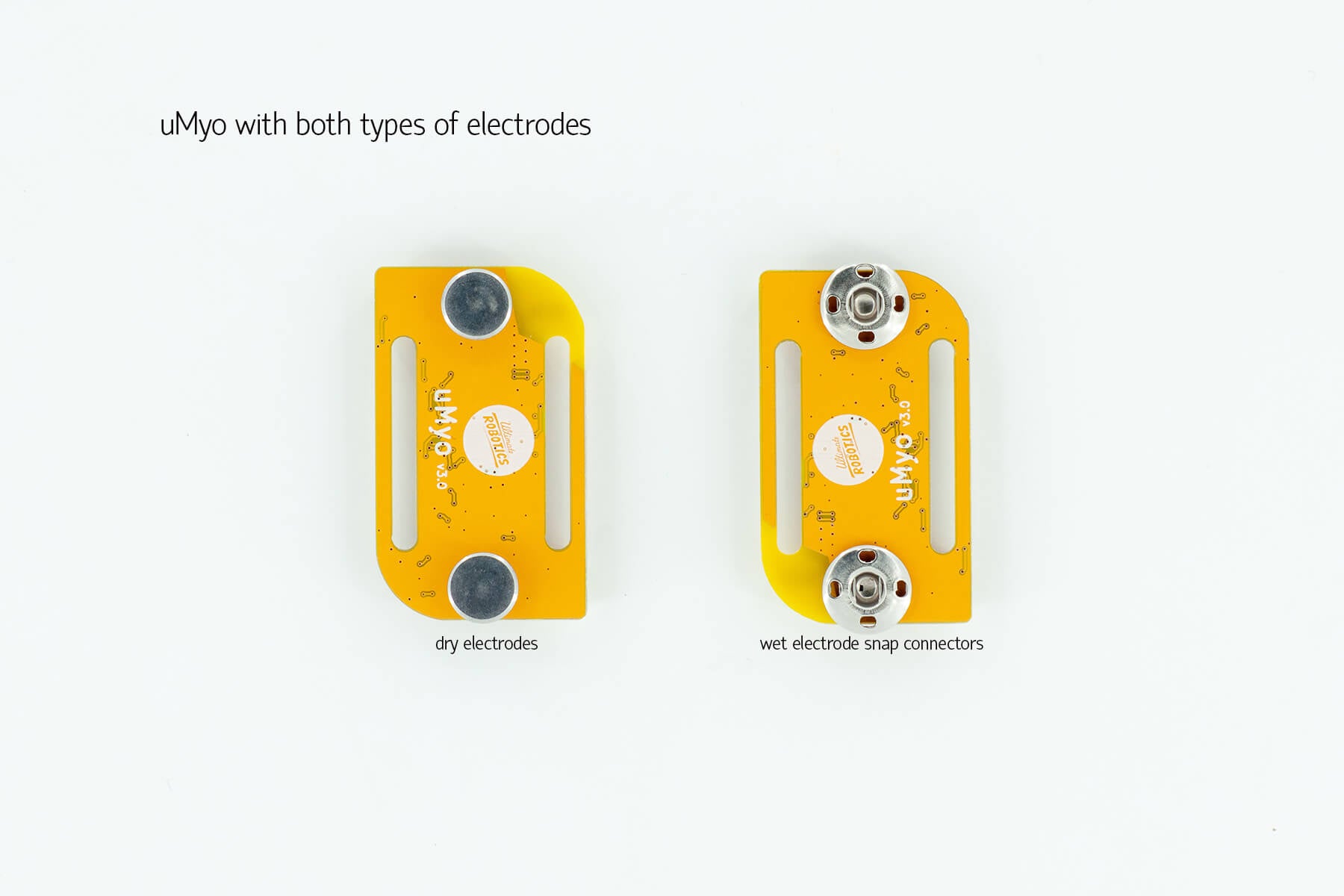

  • uMyo sensor - PCB with dry electrodes and wet electrode connectors attached

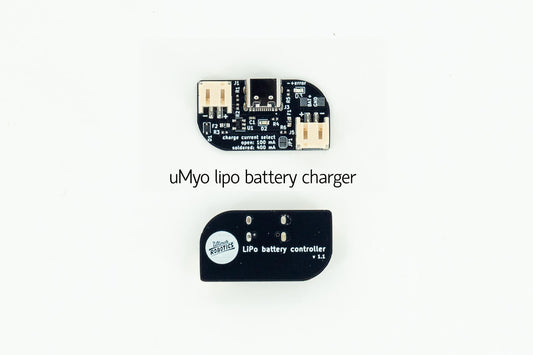

  • uMyo LiPo battery charger PCB with USB-C connector and two JST 2-pin connectors

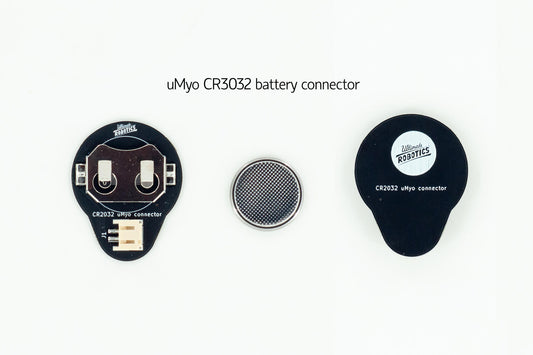

  • uMyo battery connector PCB for CR2032 coin cell, with JST 2-pin connector

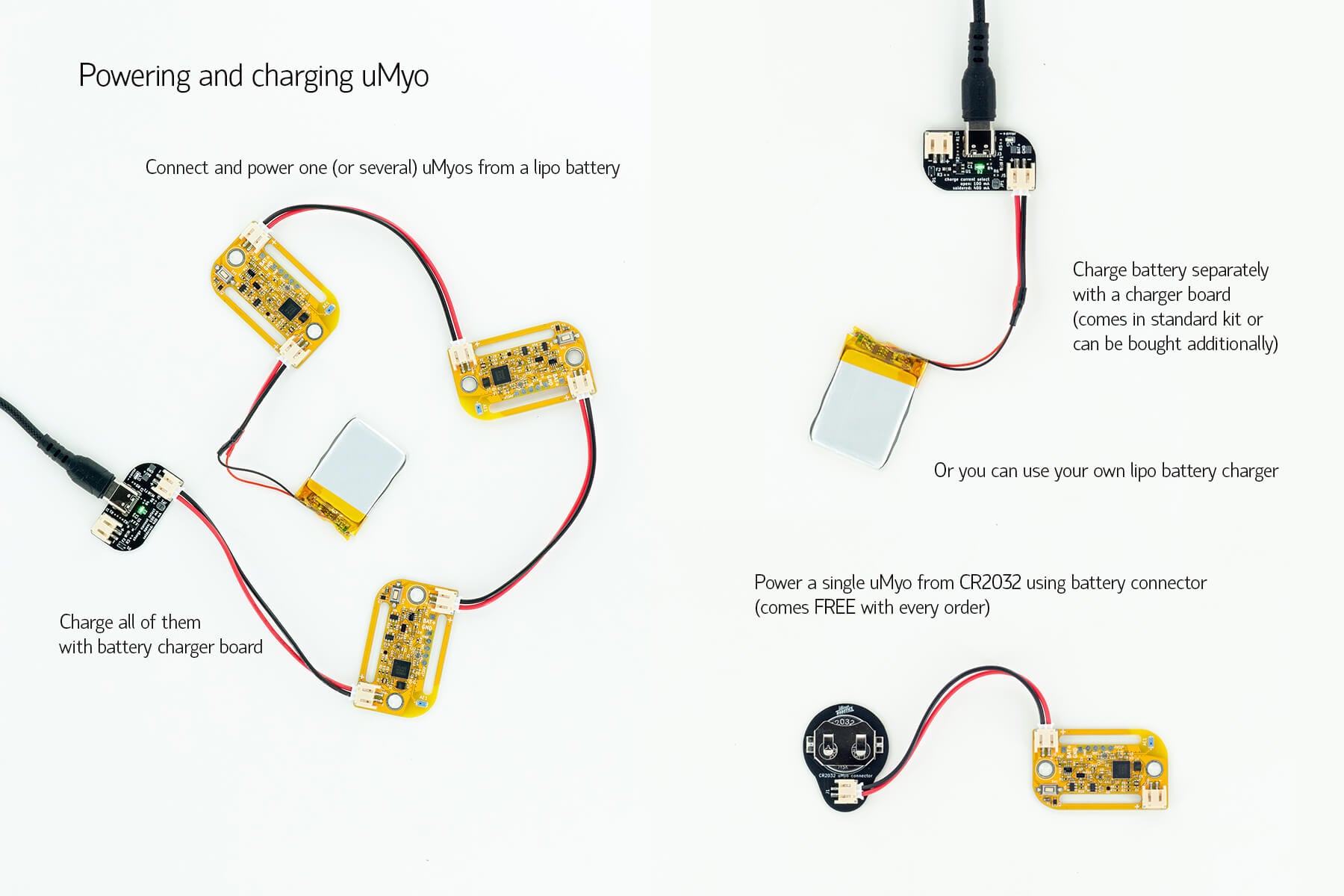

  • uMyo power and charge diagram, with uMyo PCBs connected to LiPo battery, charger PCB and CR2032 battery holder PCB.

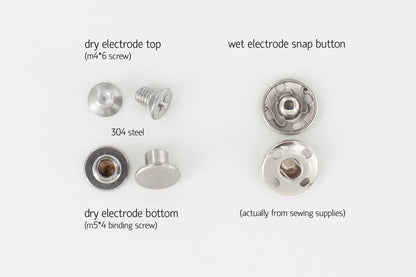

  • uMyo electrodes - dry electrode screws and bolts, wet electrode snap buttons
  • uMyo standard kit - 2 uMyo PCBs, 1 LiPo charger PCB, 1 CR2032 battery holder PCB, 1 USB-C cable, 3 JST 2 mm cables, bracelet, dry and wet electrode connectors, 20 30mm gel electrodes
  • uMyo standard kit - 3 uMyo PCB, 1 LiPo charger PCB, 1 CR2032 battery holder PCB, 1 USB-C cable, 4 JST 2 mm cables, bracelet, dry and wet electrode connectors, 30 30mm gel electrodes

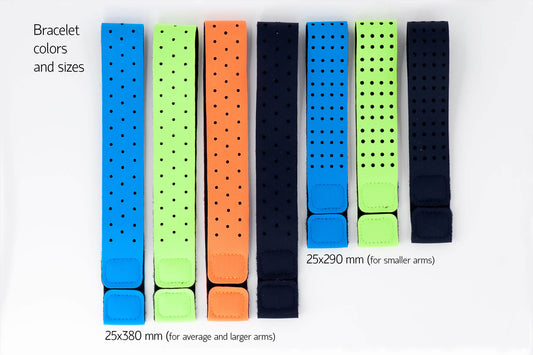

  • uMyo bracelets in two sizes - 25x380 for average and larger arms, 25x290 for smaller arms, in different colors - blue, neon green, orange and black
1 12

My Store

uMyo - wearable EMG sensor

uMyo - wearable EMG sensor

10 in stock

$49.00 USD
$49.00 USD
Sale Sold out
Shipping calculated at checkout.
Kit type
Bracelet color and size

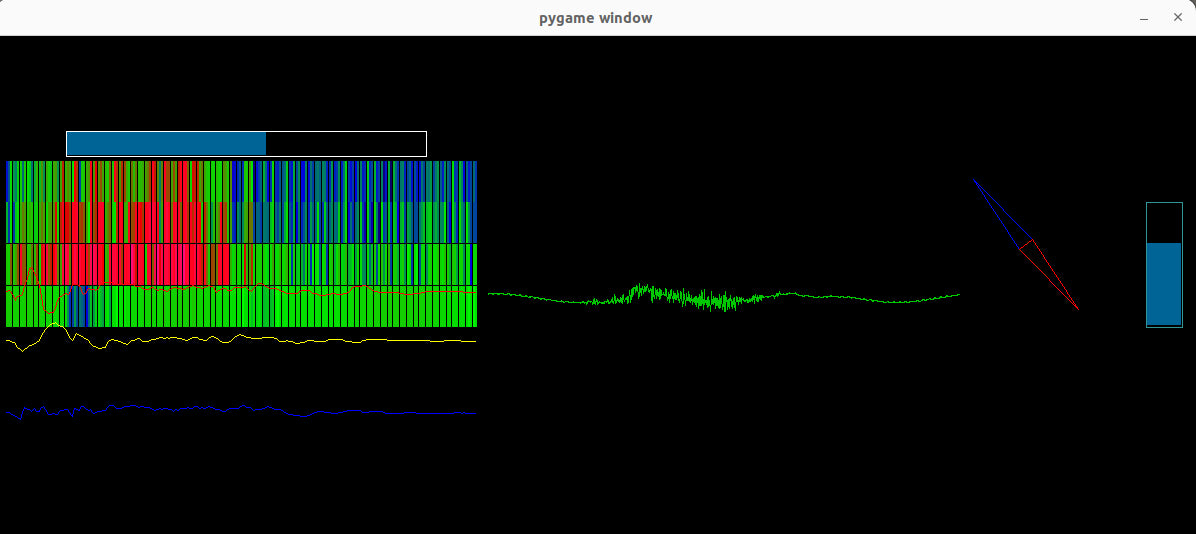

uMyo is an open source wearable EMG sensor. It's single-channel, wireless, and collects muscle activity (EMG) data which you can then use in your projects. Works with any Arduino via nRF24 radio module, ESP32 boards, or our USB receiver base to send data to a desktop monitor app.

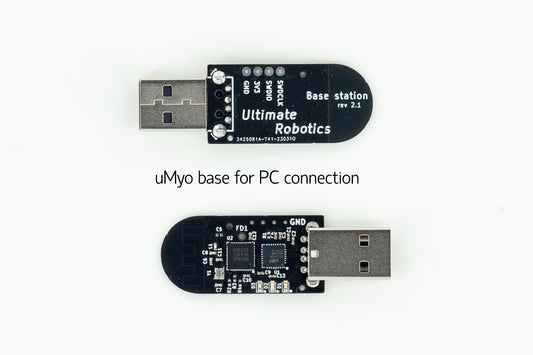

You can buy our base for uMyo PC connection here: Ultimate Receiver Base

Up to 12 uMyos can work at the same time, and they can use either dry electrodes (with a wristband) or wet electrodes. uMyo EMG sensors can be chained together with JST cables (PH2.0) to share power from a single LiPo battery, or a CR2032 to power one sensor (via battery holder PCB). There is also a LiPo charger board with a USB type C connector in each kit.

Specifications

  • Microcontroller: nRF52832 BLE SoC
  • Operational amplifier: AD8293 (additional bias compensation via firmware)
  • Mains noise filter: digital 50/60 Hz filter (auto detects mains frequency)
  • LSM6DSR gyroscope/accelerometer (low noise, 16-bit)
  • Short circuit protection: yes (PTC resettable fuse)
  • Antenna type: 5dB chip antenna
  • Charging: micro USB type C, via separate LiPo charger
  • Weight: 9 g (just the device with dry electrodes attached)

What's in the kits?

uMyo only:

  • 1 uMyo EMG sensor
  • 4x dry electrodes + 4x wet electrode buttons
  • 2x PH2.0 JST cables

Standard kit:

  • 1 uMyo EMG sensor
  • a wristband of color and size of your choice
  • 1 CR2032 battery holder
  • 1 LiPo charger
  • 4x dry electrodes + 4x wet electrode buttons

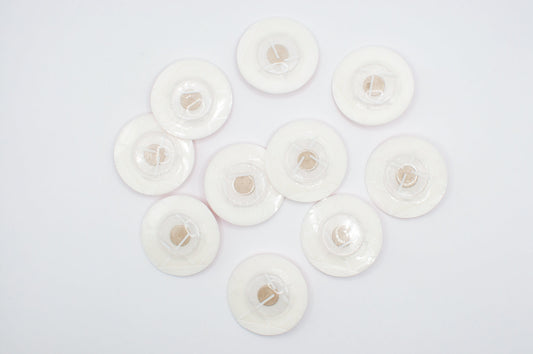

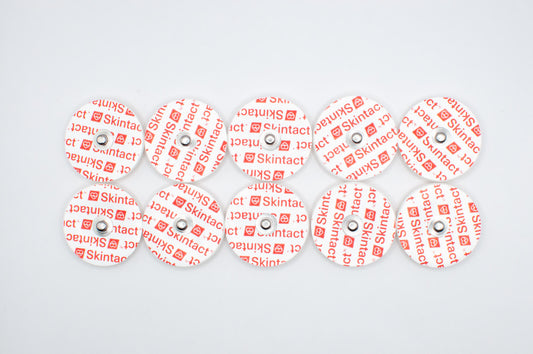

  • 10x 30mm gel electrodes
  • 2x PH2.0 JST cables

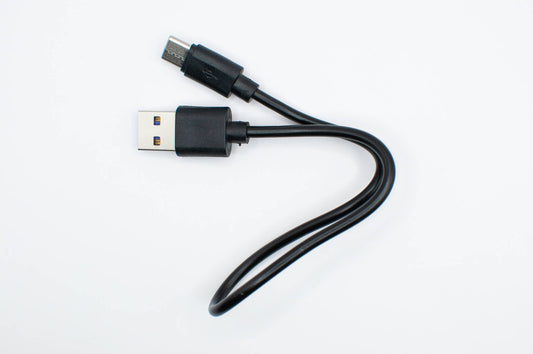

  • USB cable type C for charging

2x kit:

  • 2 uMyo EMG sensors
  • a wristband of color and size of your choice
  • 1 CR2032 battery holder
  • 1 LiPo charger
  • 4x dry electrodes + 4x wet electrode buttons
  • 20x 30mm gel electrodes
  • 3x PH2.0 JST cables
  • USB cable type C for charging

3x kit:

  • 3 uMyo EMG sensors
  • a wristband of color and size of your choice
  • 1 CR2032 battery holder
  • 1 LiPo charger
  • 4x dry electrodes + 4x wet electrode buttons
  • 30x 30mm gel electrodes
  • 4x PH2.0 JST cables
  • USB cable type C for charging
