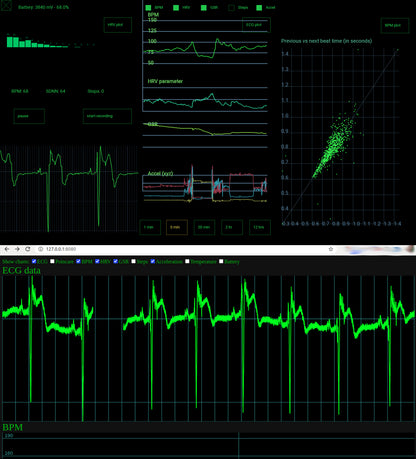

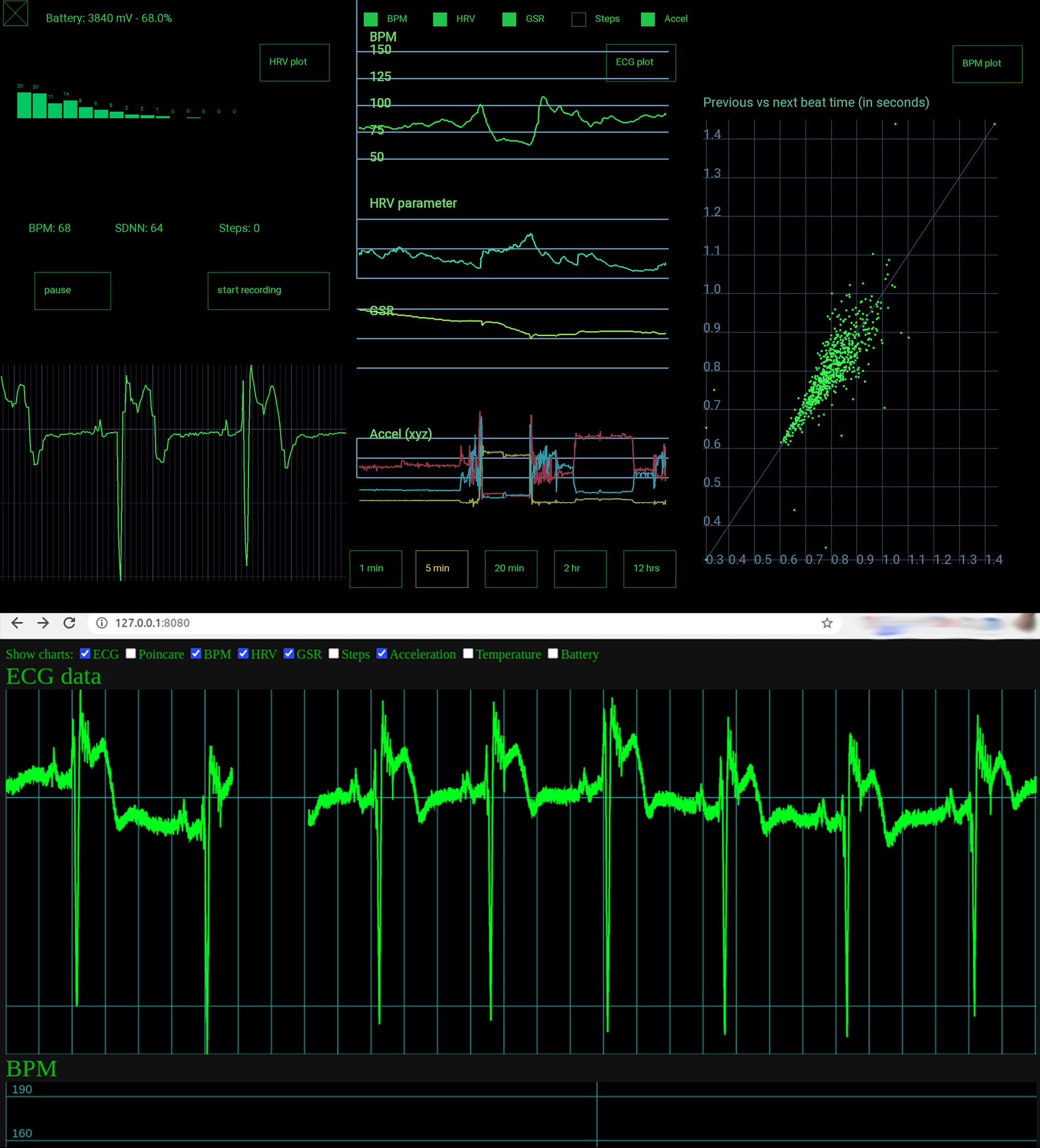

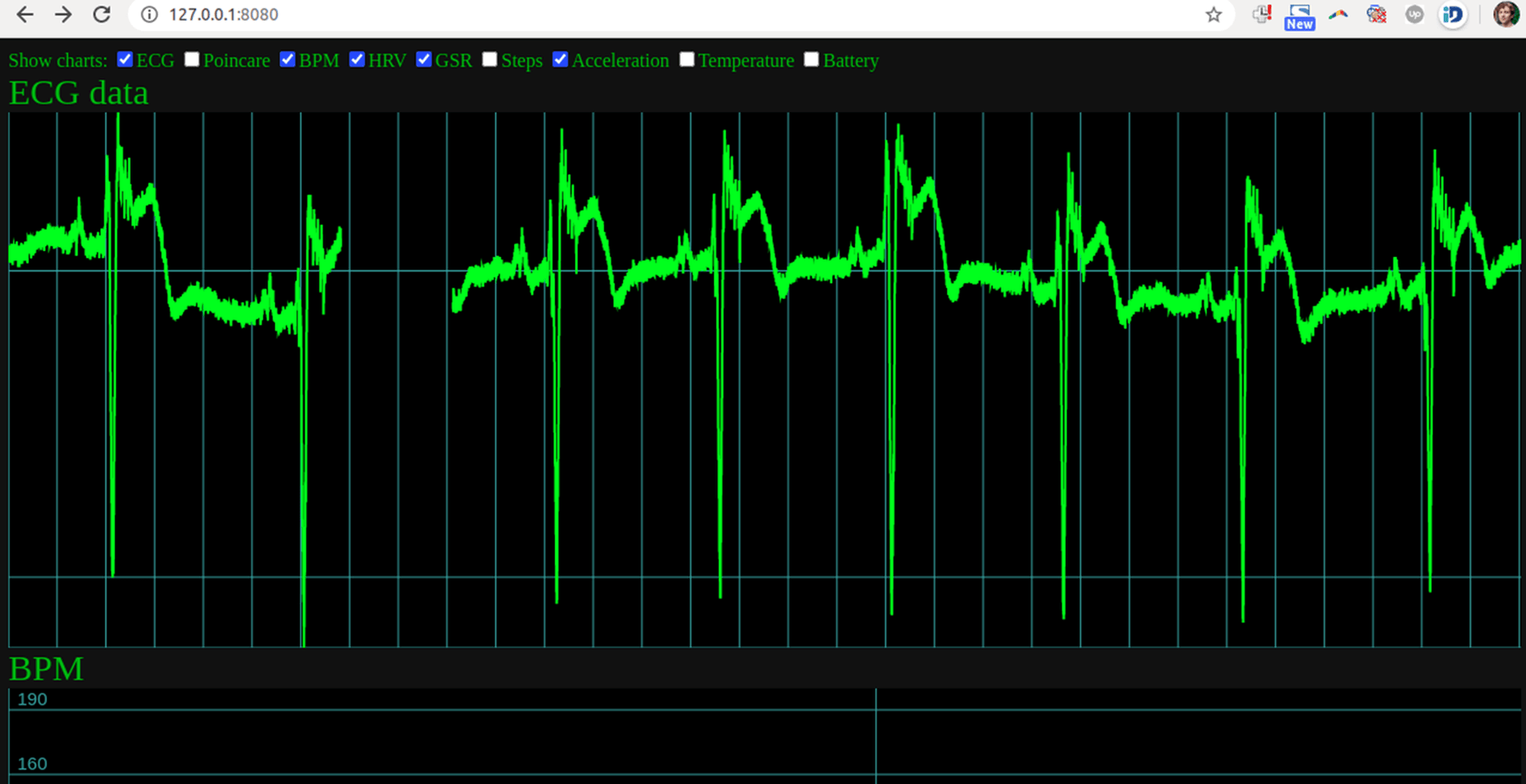

Open source, single-channel wearable ECG sensor with excellent signal quality. Worn on the chest, uECG collects raw ECG data and streams it to an Android mobile app or desktop monitor (requires our USB receiver base).
Can be used during movement or exercise, and works for up to 24 hours on one charge.
uECG makes wearable ECG comfortable, accessible and customizable, perfect for anyone working with biosignals for research, study or development.

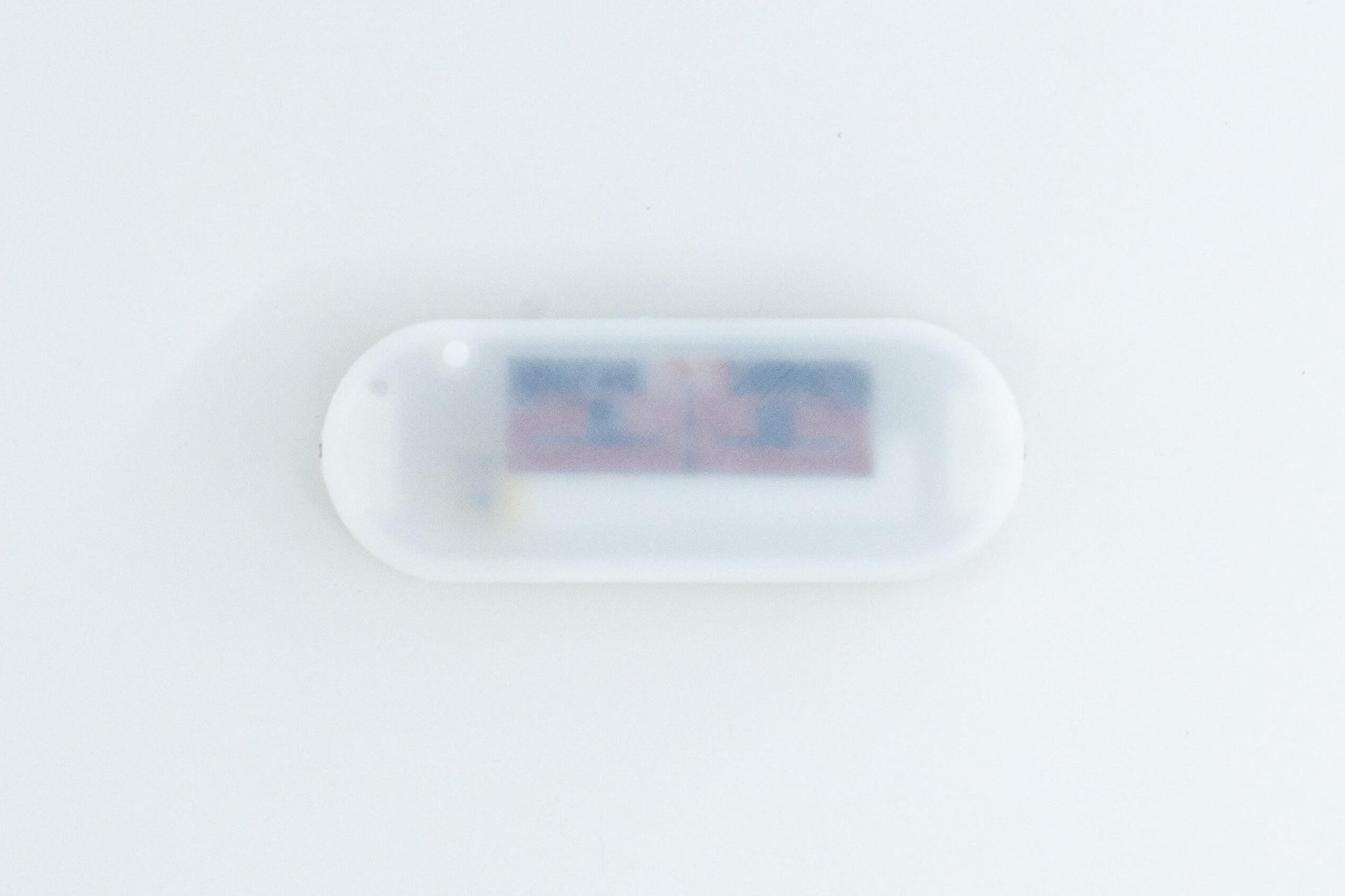

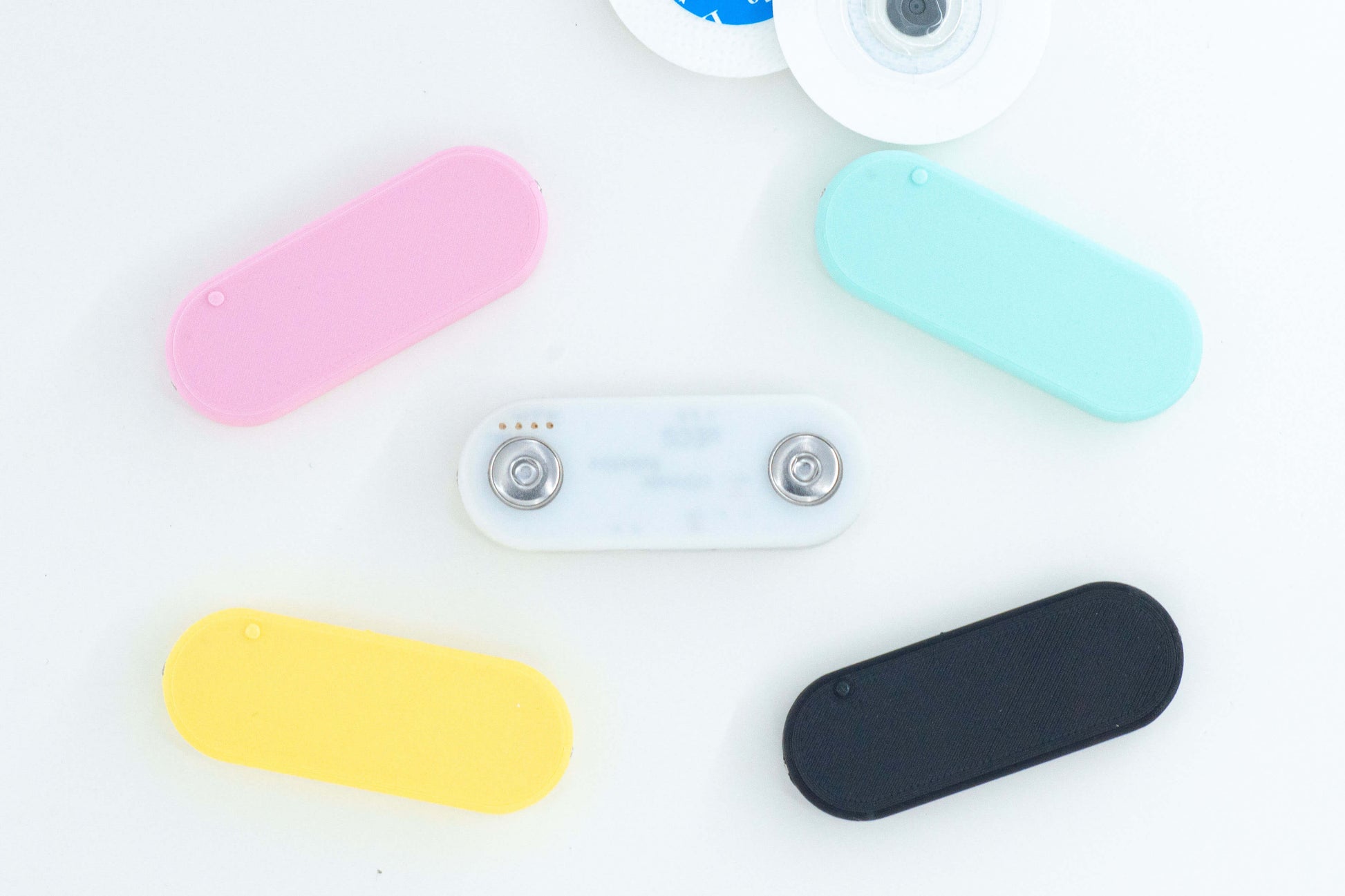

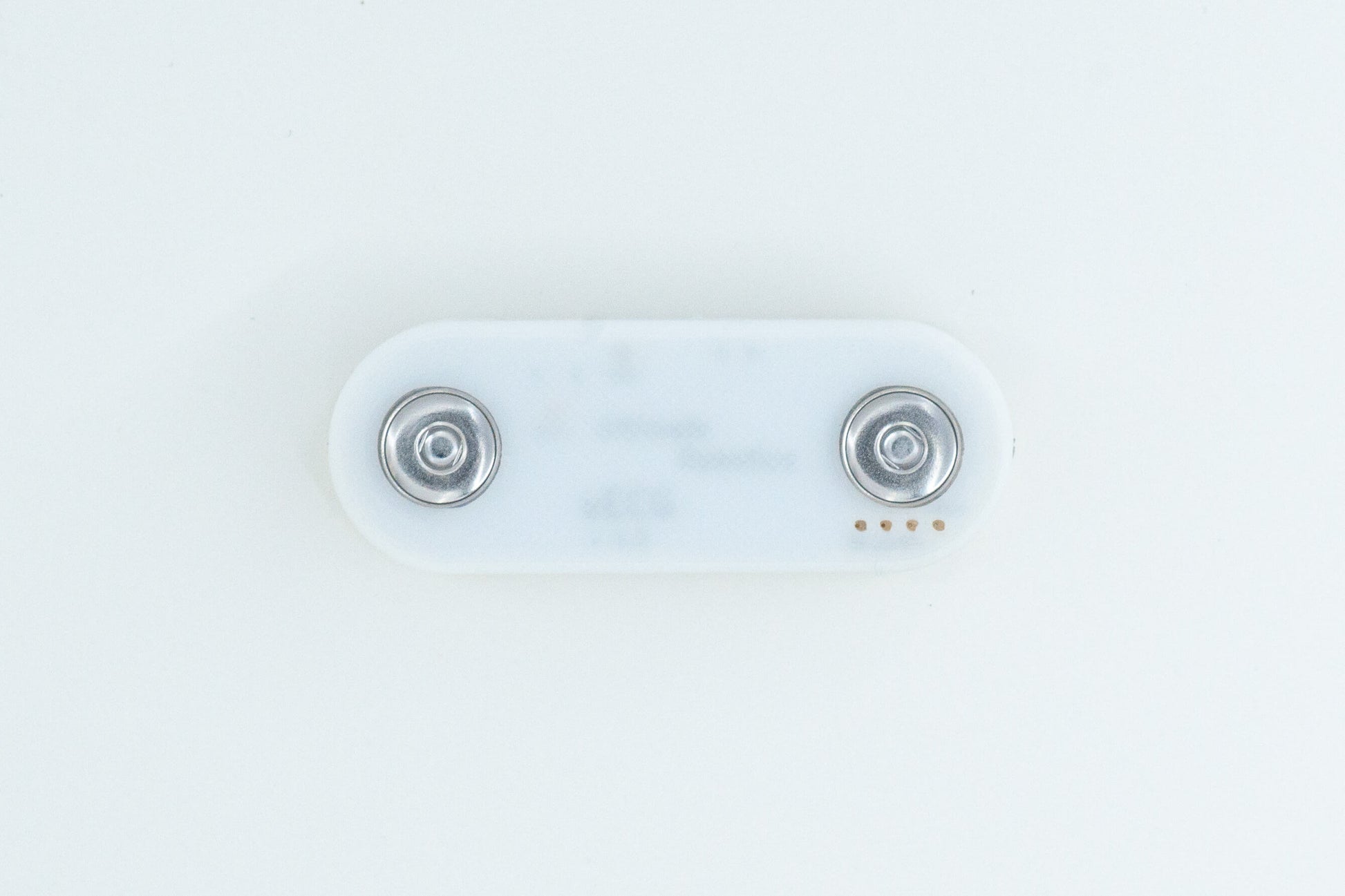

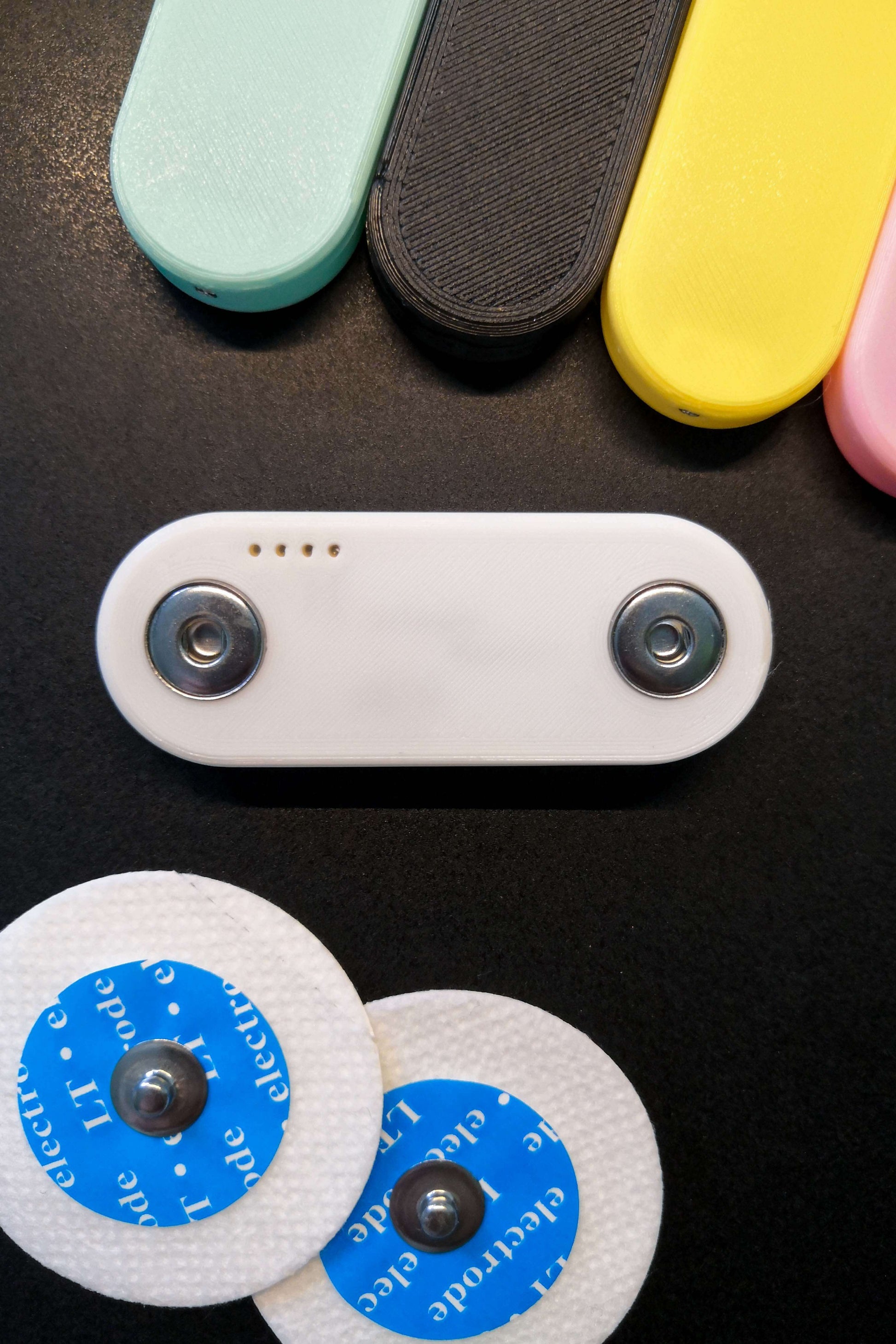

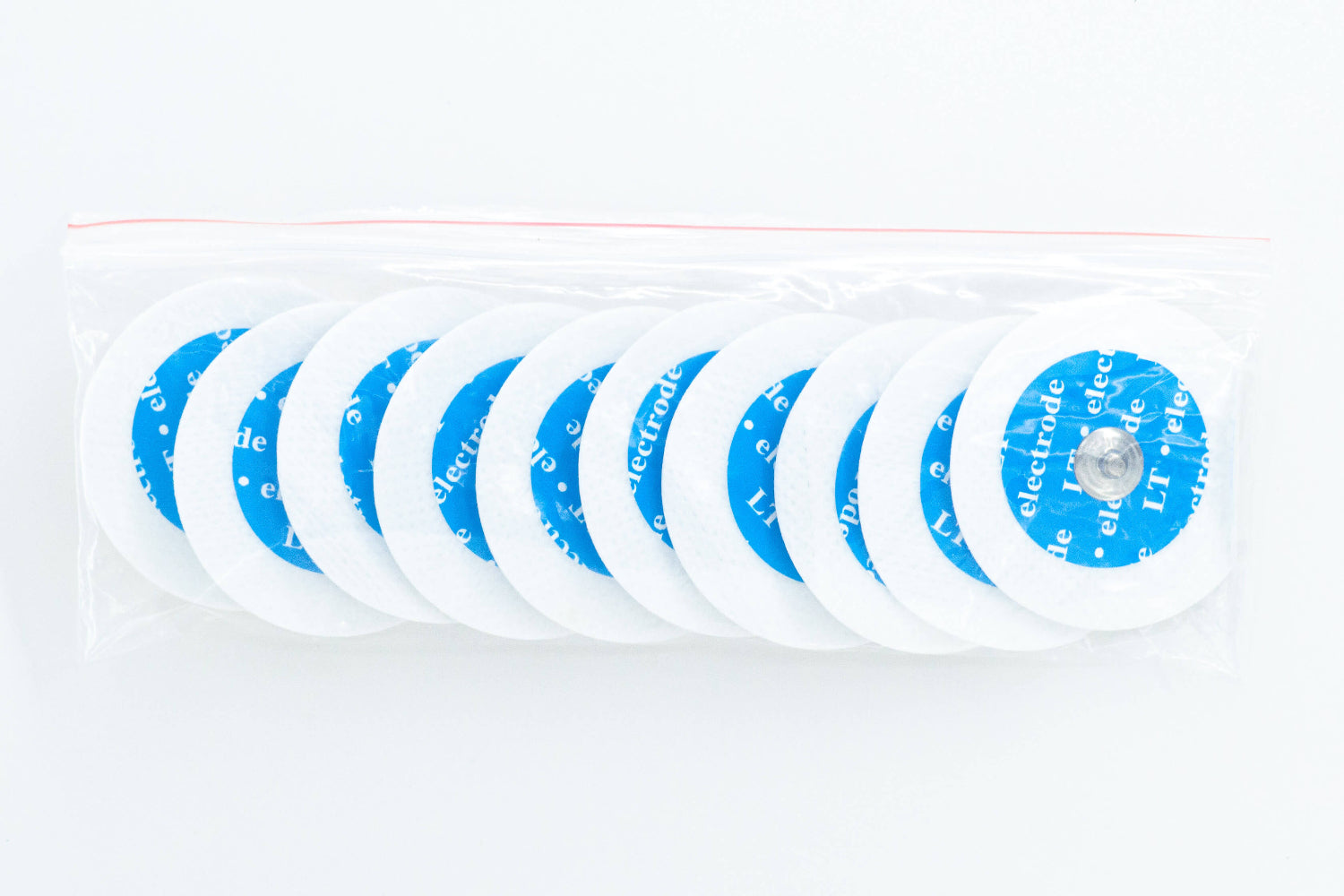

The device comes in a 3D-printed device case, with internal battery. Standard kit includes 45mm electrodes, micro-B USB charging cable and replacement screws for device case.
uECG is designed for:
researchers;
students;
hardware and software developers;
biosignals and open source enthusiasts;
You can freely use and modify it for your projects!
Features:

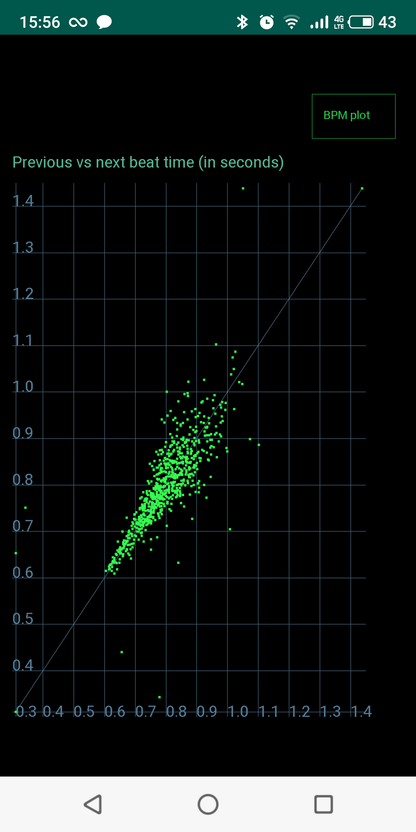

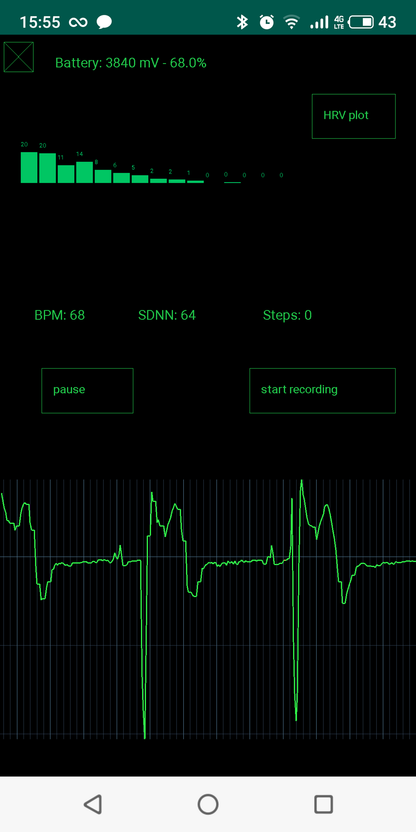

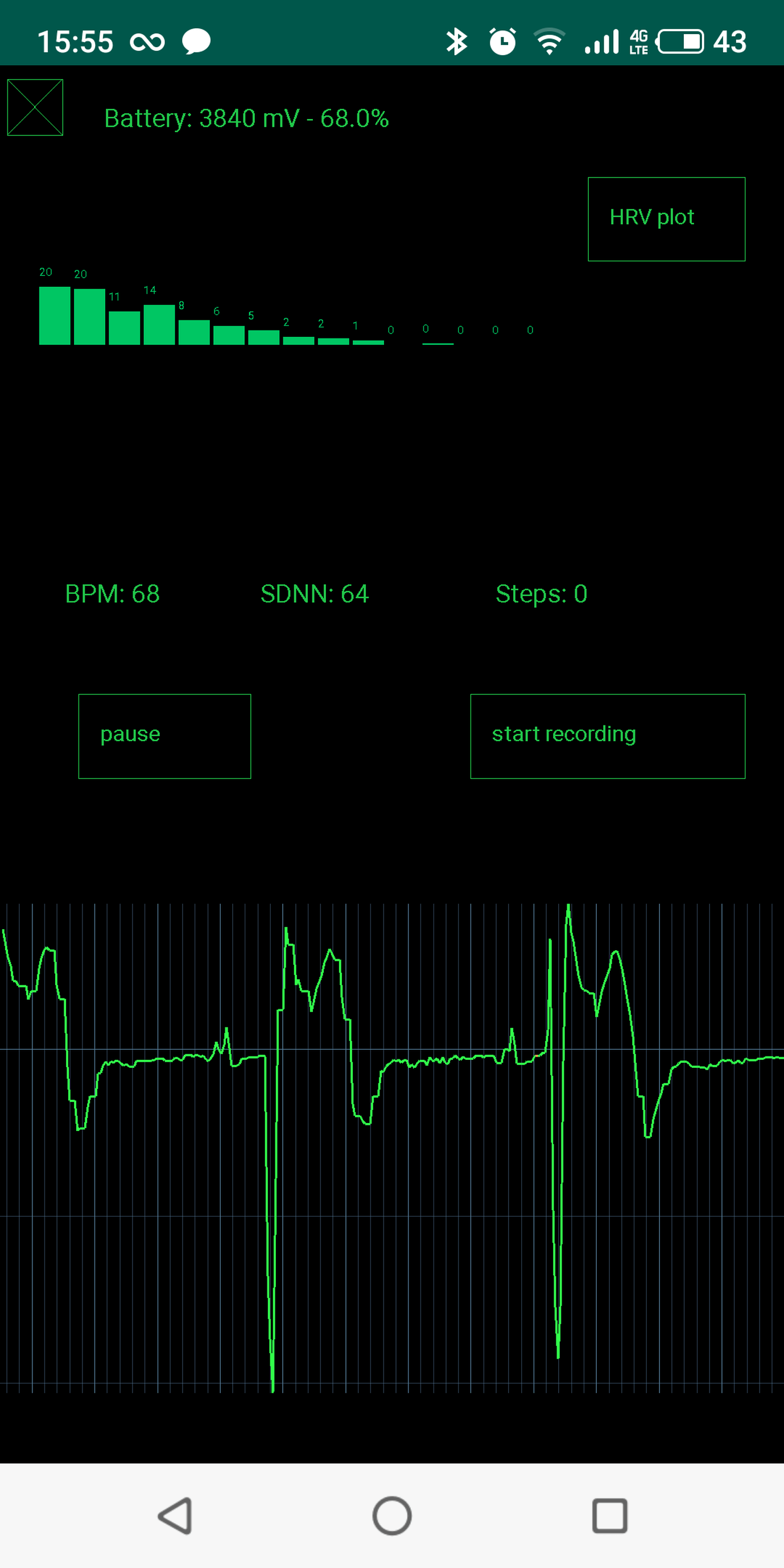

BPM, HRV, heart rate, data visualization in graph or Poincare plot;

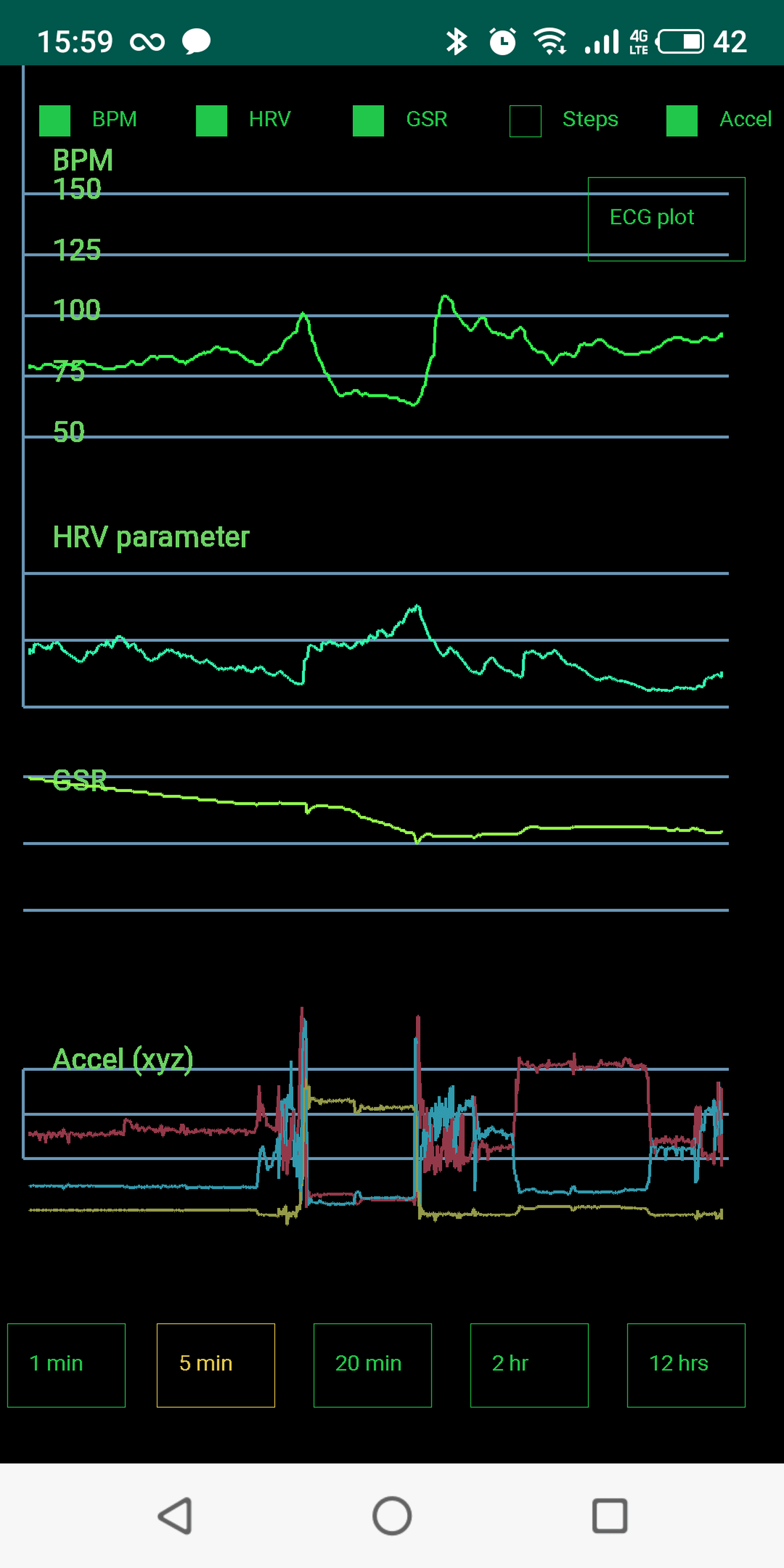

Accelerometer/gyroscope data;
Wireless firmware update;
Works with other fitness apps (over standard BLE connection);
Specifications:
Microcontroller: nRF52832 BLE SoC
ADC: MCP3911 dual channel
Buffer op amp: 2x TLV271
IMU: LSM6DS3TR-C gyroscope/accelerometer
Short circuit protection: yes, PTC resettable fuse
Antenna: 2.4Ghz 5dB, 35*11mm sticker
Battery: 220mAh, 24 hours single charge
Charger: micro USB type B
Electrode connectors: 3.9mm (compatible with most disposable gel electrodes)
